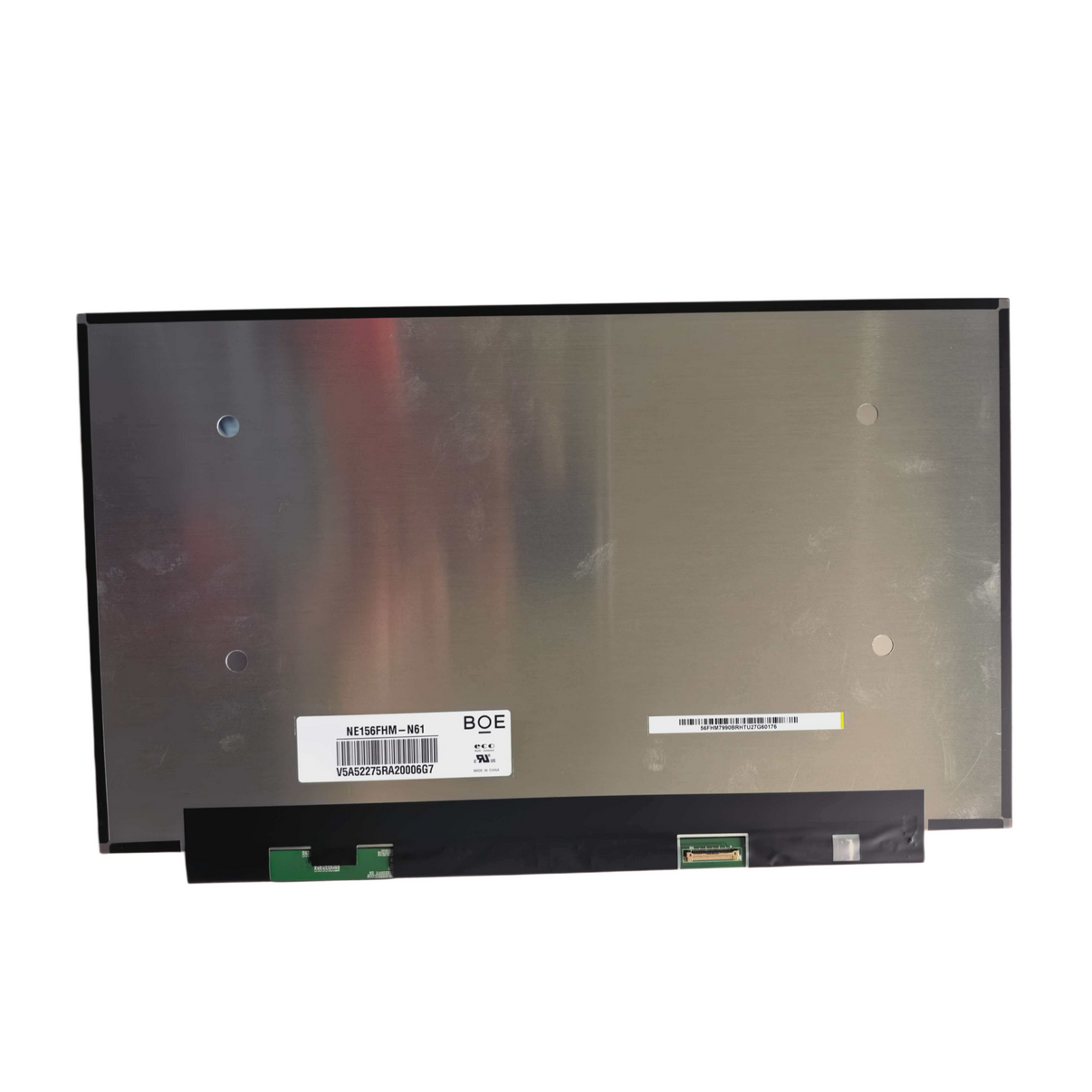

NE156FHM-N61

Description

Model: NE156FHM-N61
Manufacturer: BOE
Screen Size: 15.6 inches
Resolution: 1920 × 1080 (Full HD)
Pixel Pitch: 0.17925 mm
Display Colors: 16.7M (8-bit)
Panel Type: a-Si TFT, Normally Black
Surface Treatment: AG Anti-Glare
Brightness: 400 nit (Typical)
Contrast Ratio: 1300:1 (Typical)
Viewing Angle: 85°/85°/85°/85° (Left/Right/Up/Down)
Backlight: LED Single Bar (66 LEDs)
Interface: eDP 1.4 (2 Lanes, 2.7Gbps)
Operating Voltage: 3.3V (Logic) / 5~20V (Backlight)
Total Power Consumption: ≤ 2.74W (Max)
Outline Dimensions: 349.16 × 215.4 mm (With PCB)
Weight: ≤ 310g
Operating Temperature: 0°C ~ 50°C
Storage Temperature: -20°C ~ 60°C
Features: Slim & Lightweight, Built-in LED Driver, Built-in EDID, RoHS Halogen-Free

What you see on our LCD display module showcase is just the tip of the iceberg!

As a dedicated professional supplier of LCD display modules, we offer a comprehensive range of solutions from small industrial screens to large-format commercial/advertising panels. Our products cover: • Resolution: From HD and Full HD to 4K Ultra HD (3840×2160) and beyond • Refresh Rate: Starting from mainstream 60Hz, with high-end options supporting 120Hz, 144Hz, 240Hz for smooth, tear-free visuals—ideal for gaming, medical, surveillance, interactive displays, and other demanding applications • Touch Functionality: Supports projected capacitive multi-touch (PCAP) and resistive touch, with sensitive response and compatibility for glove/pen input modes • Panel Type: IPS wide viewing angle (178°/178°), high brightness (500-1500nit+), high contrast, anti-glare, anti-reflection, and more • Size Options: 7", 10.1", 13.3", 15.6", 21.5", 27", 32", etc., with landscape/portrait orientations, open-frame or integrated designs available • Interfaces: HDMI, DP, LVDS, eDP, MIPI, V-by-One, and other standard interfaces for seamless compatibility with various motherboards/systems • Special Applications: High-brightness outdoor, sunlight-readable, ultra-slim bezel, wide temperature range (-20~70℃), explosion-proof/dustproof/waterproof ratings, etc.

The models displayed on our website represent only a selection of our hot-selling and commonly requested items. We have many more non-standard sizes, custom resolutions, ultra-high refresh rates, specialized touch layers, narrow bezels, ultra-thin/curved options in stock or available for fast customization.

Most importantly: Our prices are highly competitive! Thanks to a mature supply chain and large-scale production, our LCD modules deliver equal or superior quality at prices often 10-30% lower than mainstream market offerings. Bulk/wholesale orders unlock even greater discounts. We're the true king of cost-performance!

Have any specific requirements (size, resolution, refresh rate, touch type, brightness, interface, quantity, etc.)? Don't hesitate—leave your contact information right now, or click [Chat]. Our professional team will respond within 24 hours with the best-matched solution and the most affordable quote.

Make your projects clearer, smoother, and more cost-effective—start with us!
